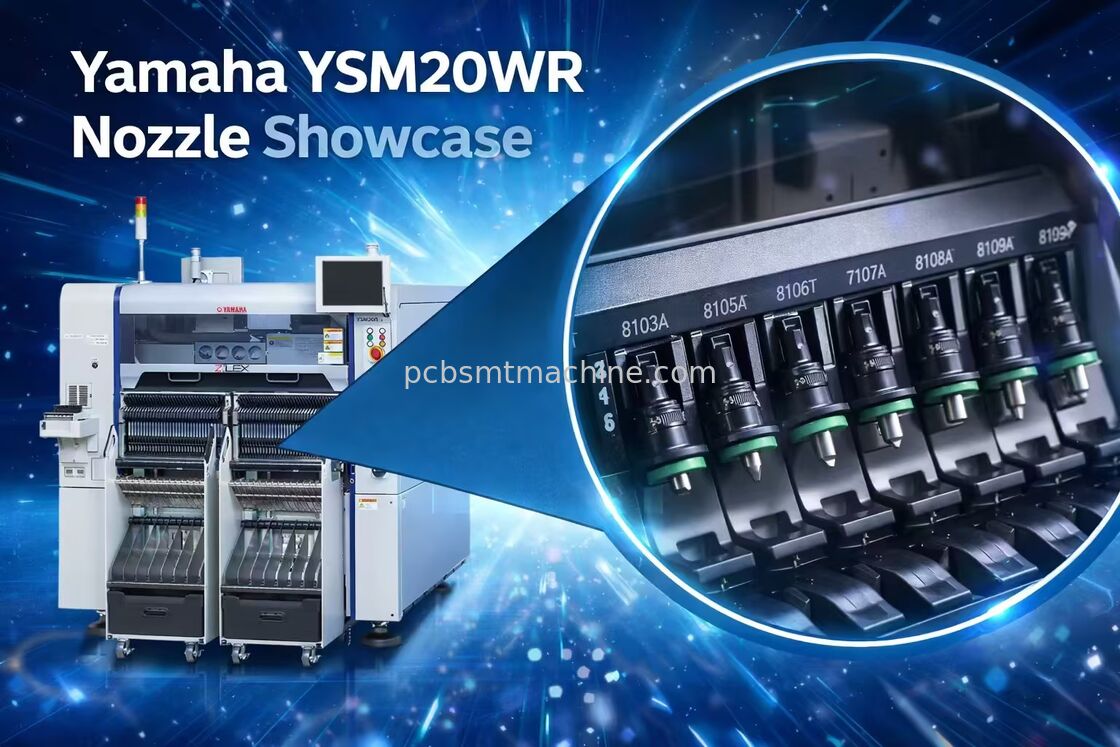

Yamaha YSM20WR RM Head SMT Pick And Place Nozzle 8103A~8110R 8004H~8012H OEM KMX-M77XX-A0 High Precision Mounter Spare Parts For YSM10 YSM20 YSM40R

Lugar de origen:

JAPÓN

Nombre de la marca:

Yamaha

Certificación:

81/800H/30X/31X/7200/500/510 Series Nozzles

Número de modelo:

Documento:

YRM_and_YSM__Suction nozzle...ns.pdf

Contacta con nosotros

Solicitar una cita

Yamaha YSM20WR RM Head SMT Pick And Place Nozzle 8103A~8110R 8004H~8012H OEM KMX-M77XX-A0 High Precision Mounter Spare Parts For YSM10 YSM20 YSM40R

Detalles del producto

Condiciones de pago y envío

Cantidad de orden mínima

Precio

1-100USD

Detalles de empaquetado

caja de cartón

Tiempo de entrega

3-5 días laborables

Condiciones de pago

LC, D/A, D/P, T/T, Unión Occidental

Productos relacionados

Codificador rotatorio OMRON E6C2-CWZ6C 360P/R NPN ABZ con resistencia al polvo y aceite IP64 para equipos SMT

Obtenga el mejor precio

Pin de localización de acero inoxidable endurecido con precisión a nivel de micrón y ESD antiestático para impresoras SPG de Panasonic

Obtenga el mejor precio

Amplificador de fibra óptica digital Keyence FS-V31 | Sensor de fibra industrial NPN de alta velocidad de 33 μs para ensamblaje de PCB SMT

Obtenga el mejor precio

Interflux IF930 Gel desoxidante libre de halógenos para las boquillas de flujo inverso ERSA en tamaños de 10cc y 30cc

Obtenga el mejor precio

Contacta con nosotros

(86)-13823274872

rosy@pcbsmtmachine.com

86-755-23115005

Contacta ahora

Descripción del producto

Yamaha SMT Nozzle with Tungsten Steel Suction Tip for High Precision Vision Matching and OEM Part Numbers

Product Overview

Our Yamaha SMT Nozzle serves as a core replacement spare part for Yamaha YSM series high-speed chip mounters, including YSM10, YSM20, YSM20WR, and YSM40R models with RM Head, RS Head, and MU Head configurations. All nozzles feature tungsten steel suction tips, ensuring stable pickup rates and extended service life, while being fully compatible with OEM part numbers.

Compatible Machine Models

YSM20WR: RM Head (81 Series / 800H Series Nozzles)
YSM10 / YSM20 / YSM20R: 30X / 31X Series Nozzles
YSM40R: RS Head 7200 Series / MU Head 500/510 Series Nozzles

Complete Parts List

81 & 800H Series Nozzles (YSM20WR RM Head)

Nozzle Type	Suitable Components	OEM Part No.	Full Part Name
8103A	0402 Chip	KMX-M7713-A0	NOZZLE 8103A ASSY.
8104A	0603 Chip	KMX-M7714-A0	NOZZLE 8104A ASSY.
8105A	1005 Chip	KMX-M7715-A0	NOZZLE 8105A ASSY.
8106A	1608 Chip	KMX-M7716-A0	NOZZLE 8106A ASSY.
8107A	2012 Chip	KMX-M7717-A0	NOZZLE 8107A ASSY.
8108A	3216~3225 Chip	KMX-M7718-A0	NOZZLE 8108A ASSY.
8109A	3.2×3.2~7.2×7.2mm Components	KMX-M7719-A0	NOZZLE 8109A ASSY.
8110R	7.2×7.2~12×12mm Components	KMX-M7720-A0	NOZZLE 8110R ASSY.
8004H	0603~1005 Chip	KMX-M7723-A0	NOZZLE 8004H ASSY.
8006H	1608~2012 Chip	KMX-M7724-A0	NOZZLE 8006H ASSY.
8011H	12×12~32×32mm Components	KMX-M7725-A0	NOZZLE 8011H ASSY.
8012H	32×32~45×45mm Components	KMX-M7726-A0	NOZZLE 8012H ASSY.

30X / 31X Series Nozzles (YSM10 / YSM20 / YSM20R)

Nozzle Type	Suitable Components	OEM Part No.	Full Part Name
301A	0603~1005 Chip	KHN-M7710-A4	NOZZLE 301A ASSY.
302A	1608~3126 Chip	KHN-M7720-A3	NOZZLE 302A ASSY.
310A/3110A	0402 Chip	KHY-M77A0-A0	NOZZLE 310A ASSY.
311A	0603 Chip	KHY-M7710-A4	NOZZLE 311A ASSY.
312A	1005~1608 Chip	KHY-M7720-A3	NOZZLE 312A ASSY.
313A	2012~3225 Chip	KHY-M7730-A2	NOZZLE 313A ASSY.
303A/314A	4532~7343 Chip / SOP	KHY-M7740-A0	NOZZLE 303A/314A ASSY.
304A/315A	QFP IC	KHY-M7750-A0	NOZZLE 304A/315A ASSY.
307A/318A	32×32~45×45mm Components	KHY-M7780-A0	NOZZLE 307A/318A ASSY.

7200 / 500/510 Series Nozzles (YSM40R RS/MU Head)

Nozzle Type	Suitable Components	OEM Part No.	Full Part Name
7202A	0402 Chip	KMB-M7720-A0	NOZZLE 7202A ASSY
7203A	0603 Chip	KMB-M7730-A0	NOZZLE 7203A ASSY
7204A	1005 Chip	KMB-M7740-A0	NOZZLE 7204A ASSY
7205A	1608 Chip	KMB-M7750-A0	NOZZLE 7205A ASSY
7206A	2012 Chip	KMB-M7760-A0	NOZZLE 7206A ASSY
7207A	3216~3225 Chip	KMB-M7770-A0	NOZZLE 7207A ASSY
7208A	SOP IC	KMB-M7780-A1	NOZZLE 7208A ASSY
500A/510A	0402 Chip	KLF-M87A0-A0	NOZZLE 500A/510A ASSY.
501A	0603~1005 Chip	KLF-M7710-A0	NOZZLE 501A ASSY.
502A	1608~3216 Chip	KLF-M7720-A0	NOZZLE 502A ASSY.
503A/514A	SOP IC	KLF-M8740-A0	NOZZLE 503A/514A ASSY.
511A	0603 Chip	KLF-M8710-A0	NOZZLE 511A ASSY.
512A	1005~1608 Chip	KLF-M8720-A0	NOZZLE 512A ASSY.
513A	2012~3225 Chip	KLF-M8730-A0	NOZZLE 513A ASSY.
504A/515A	QFP / PLCC IC	KLF-M8750-A0	NOZZLE 504A/515A ASSY.
507A/518A	≥32×32mm Large Components	KLF-M8750-A0	NOZZLE 507A/518A ASSY.
506A/517A	Cylindrical / MELF Components	KLF-M8770-A0	NOZZLE 506A/517A ASSY.

Core Product Features

Tungsten steel suction tip for anti-wear and anti-clogging performance with extended service life
Strict dimensional tolerance ensuring component pickup rate ≥99.8%
Complete OEM part numbers for one-stop supply across all Yamaha YSM series mounters
High precision vision matching for stable performance in mass PCB production
CE certified and compatible with automotive, medical, and consumer electronics SMT lines

Application Scenarios

Ideal for SMT EMS factories, PCB assembly production lines, daily maintenance replacement spare parts for Yamaha chip mounters, and electronics manufacturing plants.
