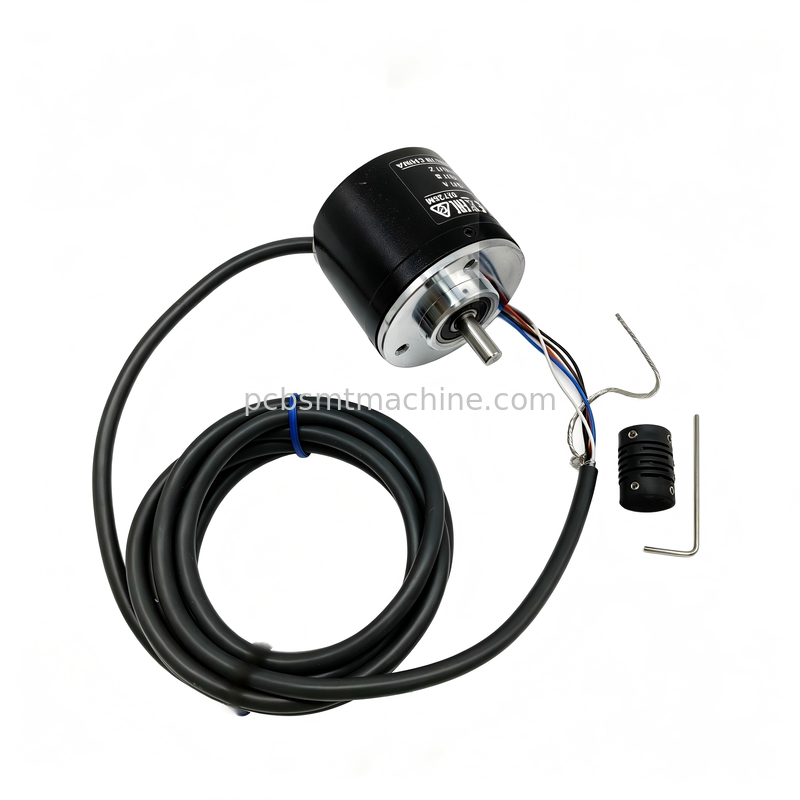

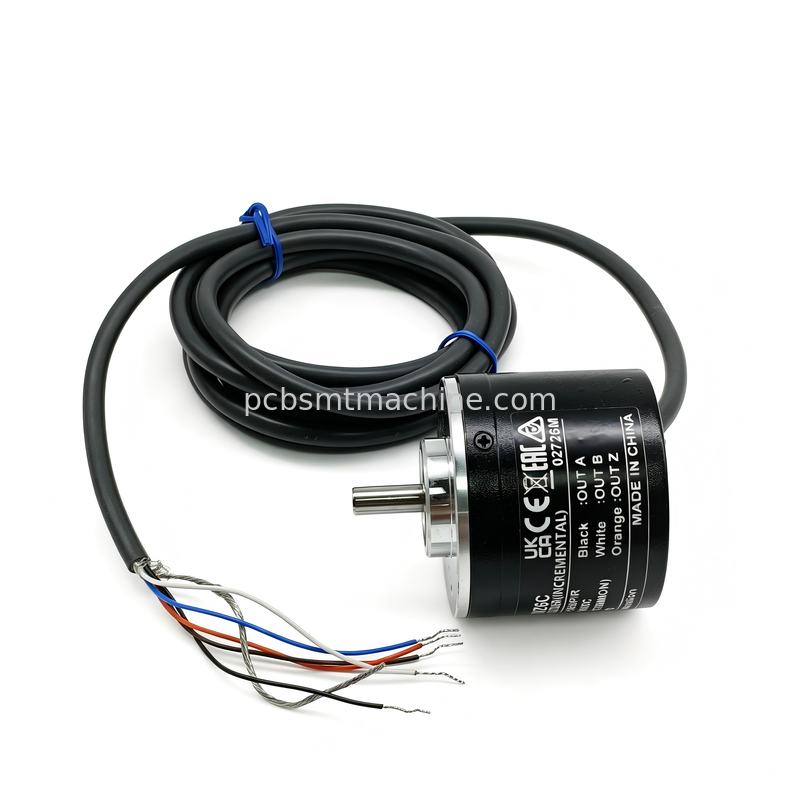

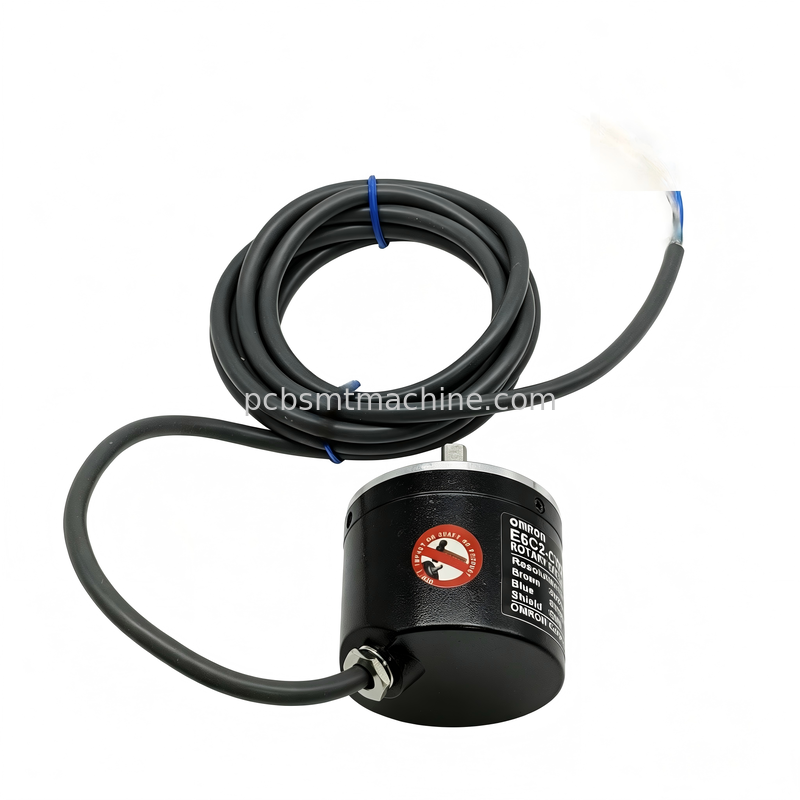

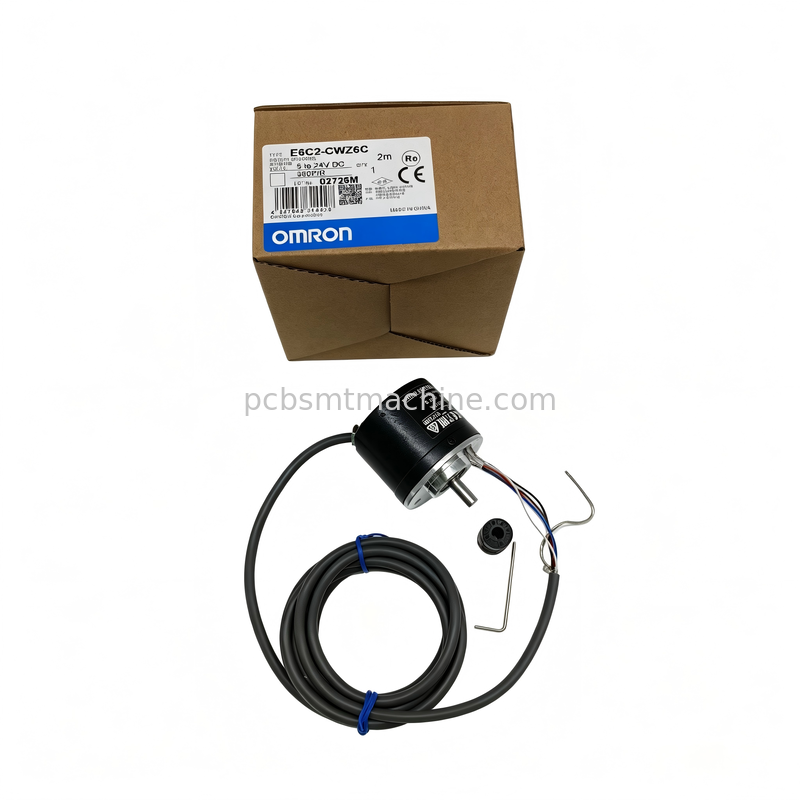

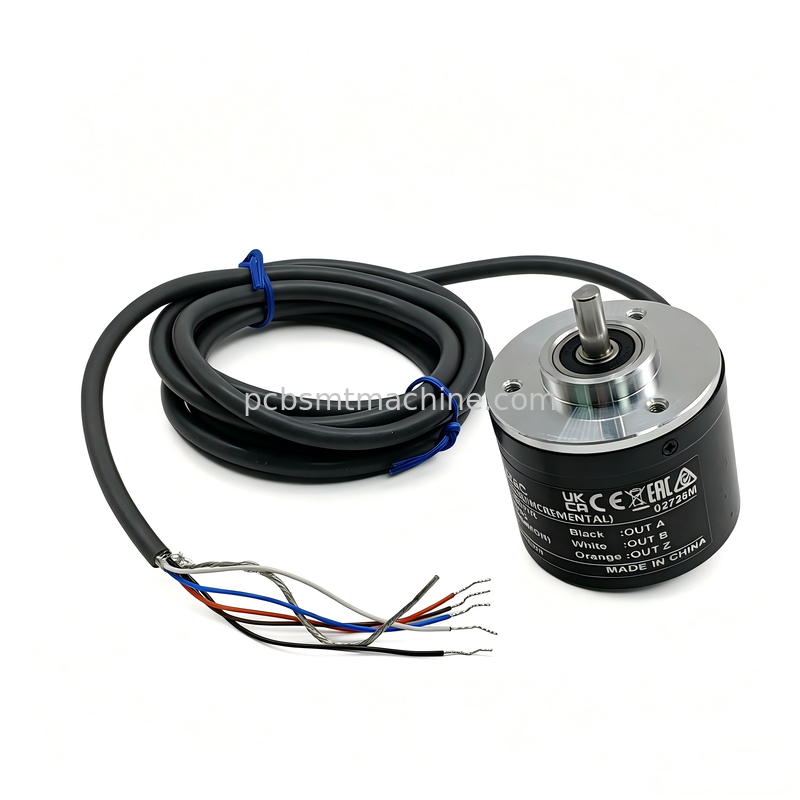

OMRON E6C2-CWZ6C 360P/R NPN ABZ Rotary Encoder with IP64 Dust and Oil Resistance for SMT Equipment

OMRON E6C2-CWZ6C incremental rotary encoder features a 50mm housing, 360P/R resolution and NPN A/B/Z signal output, supporting DC5-24V power supply.

With IP64 dust and oil resistance, it detects running speed and position for SMT printers, chip mounters and PCB production lines, serving as an ideal replacement spare part for EMS factories.

• Delivers 360P/R ABZ signals, Z phase enables precise zero reset
• Wide DC5-24V voltage range, compatible with most industrial PLCs
• Compact 50mm structure, easy installation on SMT machines
• IP64 dustproof and oilproof, suitable for long-time workshop operation
• 100kHz high response frequency, stable signal at high rotating speed
• Built-in reverse connection and short-circuit protection
• Genuine OMRON product with long service life as SMT replacement spare part
• Shielded cable greatly reduces electromagnetic interference

• Where is this encoder applied?
  It is used on SMT printers, chip mounters and PCB assembly lines to monitor position and speed.
• What is the difference between CWZ6C and CWZ5B?
  CWZ6C outputs NPN signals while CWZ5B outputs PNP signals; they are not directly interchangeable.
• Can it run on 24V power supply?
  Yes, it supports wide voltage input from DC5V to 24V.
• Can it work under liquid immersion?
  It only reaches IP64 splash-proof level, long-term liquid soaking is forbidden.
• Are these encoders brand new original?
  All items are brand new original with CE & RoHS certificates, multiple pulse resolutions are in stock.
