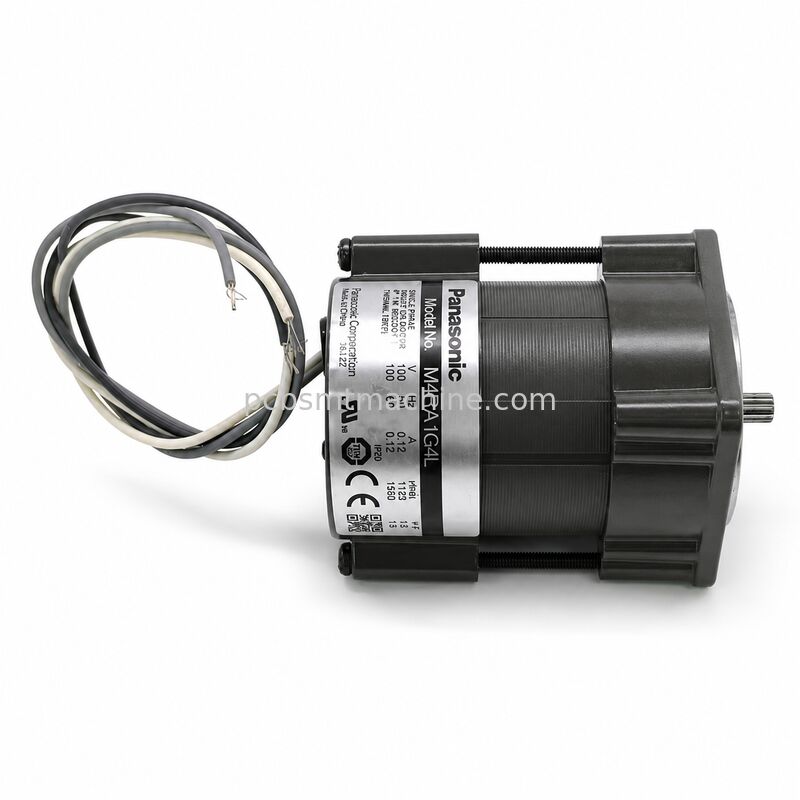

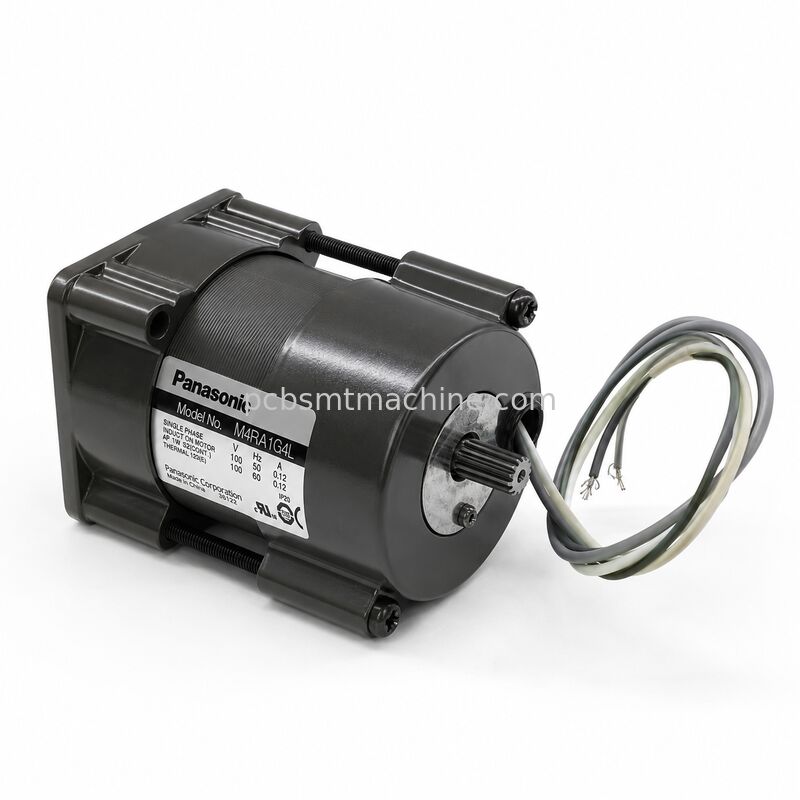

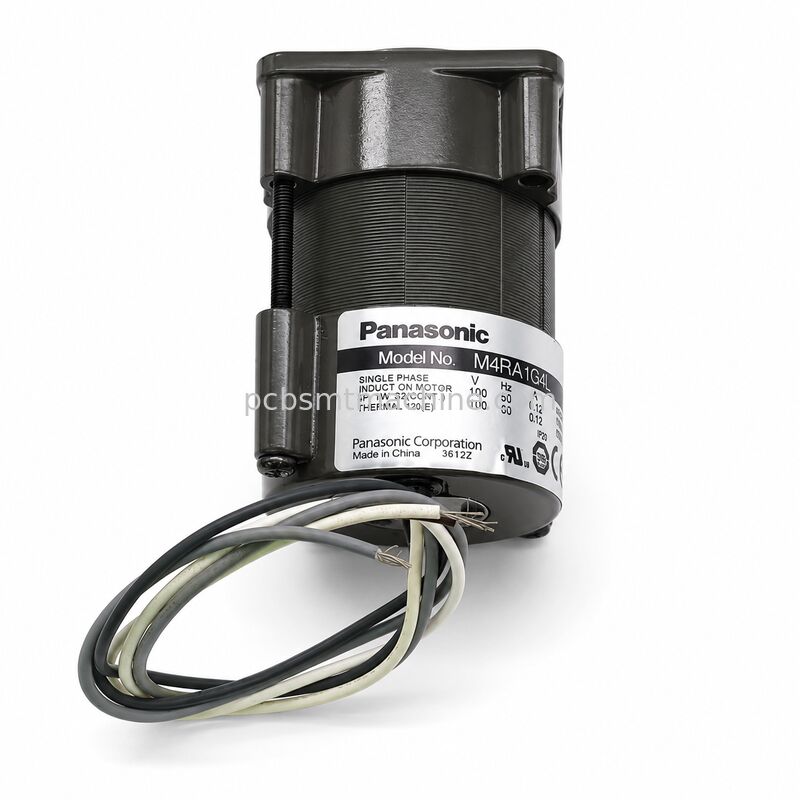

Panasonic M4RA1G4L Reversible AC Motor
Product Description
Panasonic M4RA1G4L is a compact reversible AC motor from Panasonic’s Shin-G Series, designed for small industrial automation systems and precision mechanical drive applications. It is a single-phase induction motor with a rated output of 1 W and operates at 100 VAC, 50/60 Hz.
Panasonic M4RA1G4L features a pinion shaft structure and leadwire connection, making it suitable for use with compatible Panasonic M4GA-series gear heads. Its compact 42 mm square motor body is suitable for equipment where stable rotation, space-saving installation, and reliable drive performance are required.
Product Parameters
| Item |
Specification |
| Brand |
Panasonic |
| Model No. |
Panasonic M4RA1G4L |
| Series |
Shin-G Series |
| Product Type |
Reversible AC Motor |
| Motor Type |
Single-phase Induction Motor |
| Shaft Type |
Pinion Shaft |
| Connection Type |
Leadwire |
| Rated Output |
1 W |
| Rated Voltage |
100 VAC |
| Frequency |
50 / 60 Hz |
| Current |
0.12 A |
| Poles |
4P |
| Speed |
1125 r/min at 50 Hz; 1550 r/min at 60 Hz |
| Rated Torque |
0.0083 N·m at 50 Hz; 0.0062 N·m at 60 Hz |
| Starting Torque |
0.016 N·m |
| Capacitor |
1.5 μF, 200 V |
| Motor Size |
42 mm square |
| Protection Class |
IP20 |
| Approx. Weight |
0.3 kg |
| Compatible Gear Head |
Panasonic M4GA Series |
| Approval Information |
CCC, CE, cURus |
The voltage, frequency, output, shaft type, leadwire type, size, IP rating, and RoHS-related compliance information are confirmed by Panasonic’s official product page; the current, RPM, operating temperature, and approval-agency information are cross-checked with DigiKey’s product data.
Product Features
-
Panasonic M4RA1G4L supports reversible rotation for compact mechanical drive systems.
-
1 W rated output with 100 VAC single-phase input.
-

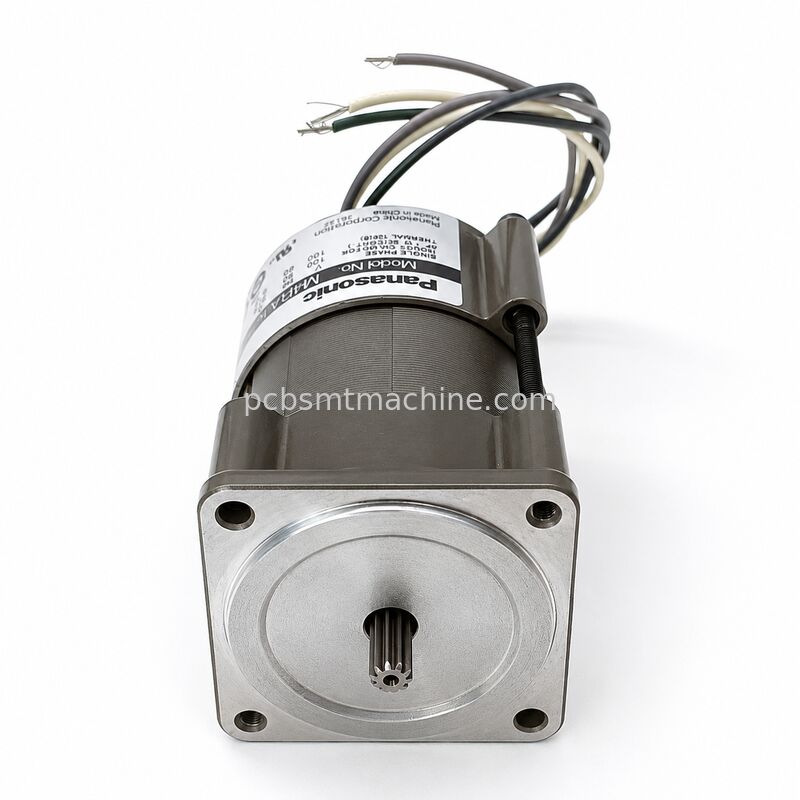

Pinion shaft design for use with compatible M4GA-series gear heads.
-
Compact 42 mm square body for space-limited equipment installation.
-
Leadwire connection for flexible wiring and maintenance.
-
Suitable for spare-parts replacement, industrial equipment maintenance, and automation drive systems.
-
Panasonic motor design with stable performance for small drive mechanisms.
Application
Panasonic M4RA1G4L can be used in compact automation equipment, mechanical drive units, feeder mechanisms, conveyors, small transmission structures, and industrial machinery requiring low-power AC motor drive.
If used in SMT equipment, insertion machines, feeders, or production-line mechanisms, compatibility should be confirmed according to the original machine BOM, maintenance manual, or the removed motor’s nameplate.
FAQ
Q1: Does this motor include a gear head?
This model refers to the motor body. If a gear head is required, please confirm the matching Panasonic M4GA-series gear head model separately.
Q2: Can this motor be used as a replacement part?
Yes, but customers should confirm the voltage, shaft type, gear head, mounting dimensions, and original equipment compatibility before replacement.
Q3: What documents can be provided?
Available documents may include product photos, nameplate confirmation, inspection details, packing information, and supplier-issued documents. For official compliance documents, customers should request them through Panasonic or an authorized channel.
Q4: What should be checked before ordering?
Please confirm the required voltage, motor model, shaft type, wiring type, gear head model, and actual machine application before purchase.
